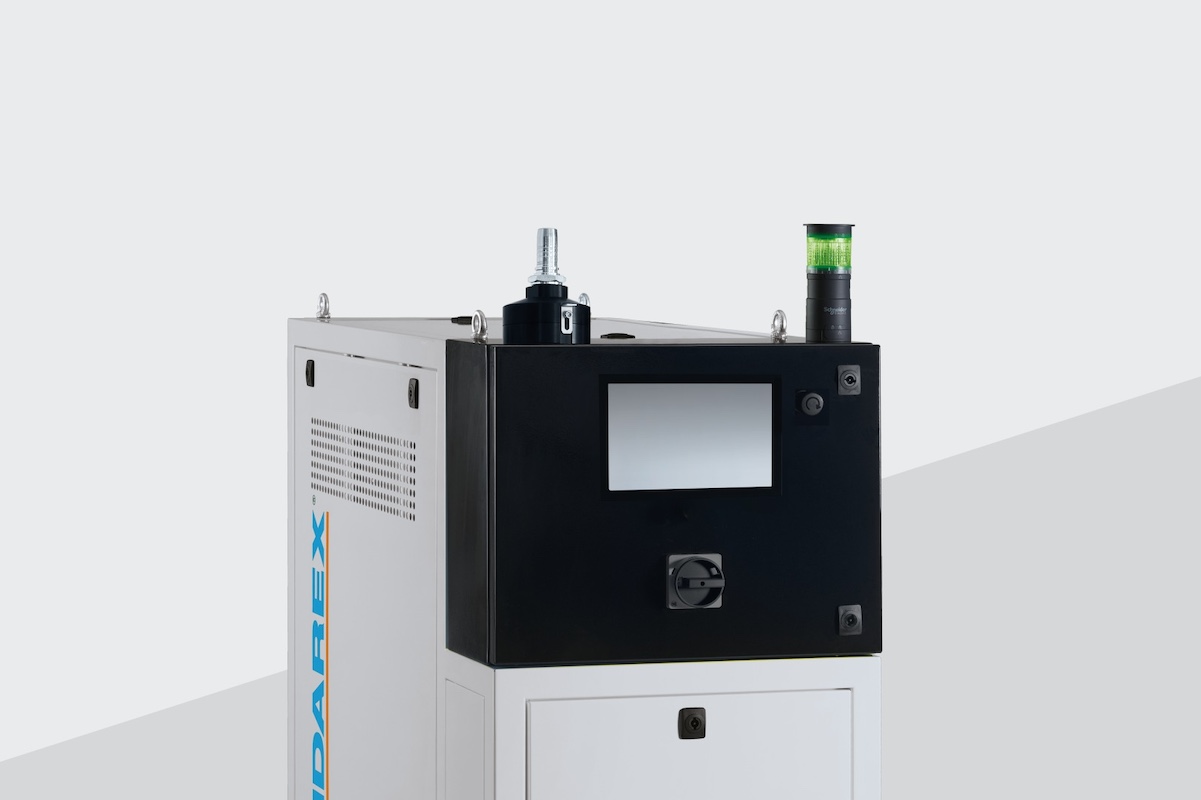

ELECTRIC MOBILE
This new, fully electric vacuum system concept
allows up to 3 electric units to be connected together on 1 DCM.
Compact solution
Simplified interface
Affordable unit
No installation assistance required
No need for compressed air
Upgradable up to 3 vacuum channels
Compatible with any DCM
Available for Zamak applications
POSSIBLE
CONFIGURATIONS

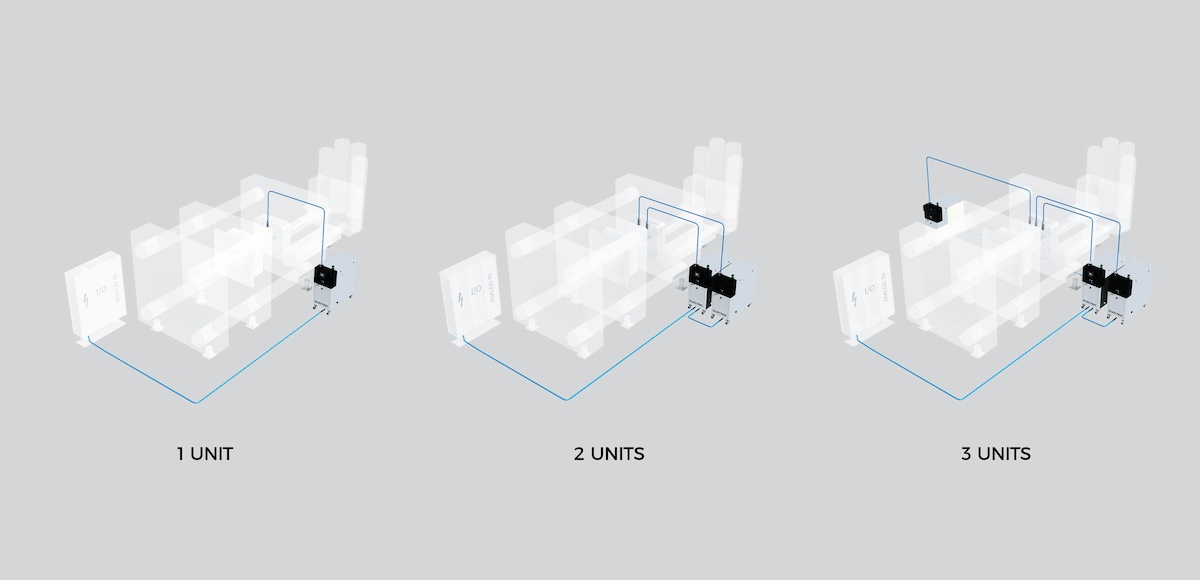

Start with 1 controller unit and
add 1 or 2 additional units at any time.
ONE / TWO

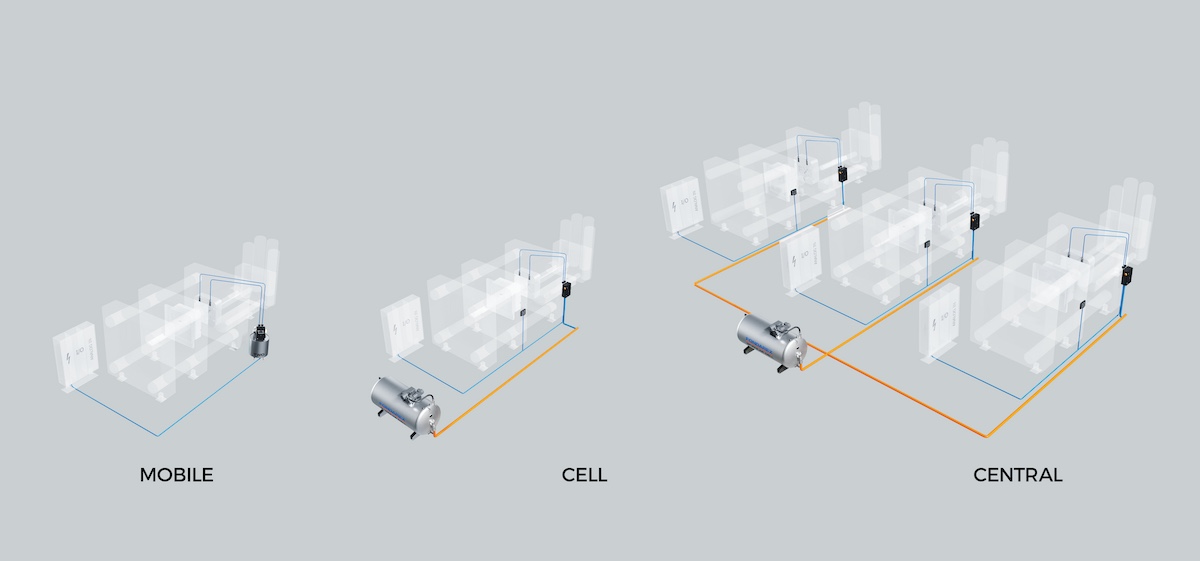

MOBILE / CELL / CENTRAL

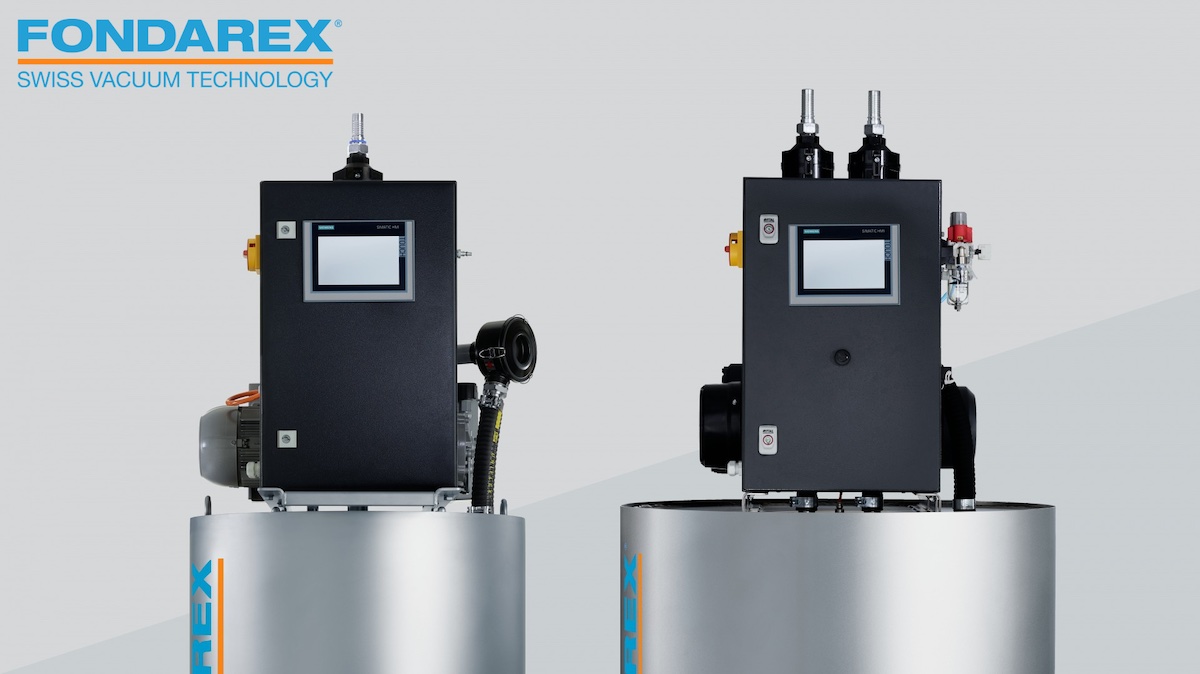

The Fondarex ONE system controls 1 vacuum valve or 1 chill vent
and is suitable for die casting machines up to 800 t.
The Fondarex TWO system controls 2 valves or 2 chill vents
and is recommended for die casting machines up to 1400 t.
1 or 2 vacuum channels
Easy-to-install system
Compatible with any vent or mechanical valve
Easy to use and maintain
Available for Zamak applications.
FEATURES
Curve display of vacuum measurement
Vacuum measurement in the tank
Filter contamination control per cycle
Valve/vent profile control to ensure performance
Internal storage of 50 production recipes
Error diagnostic display

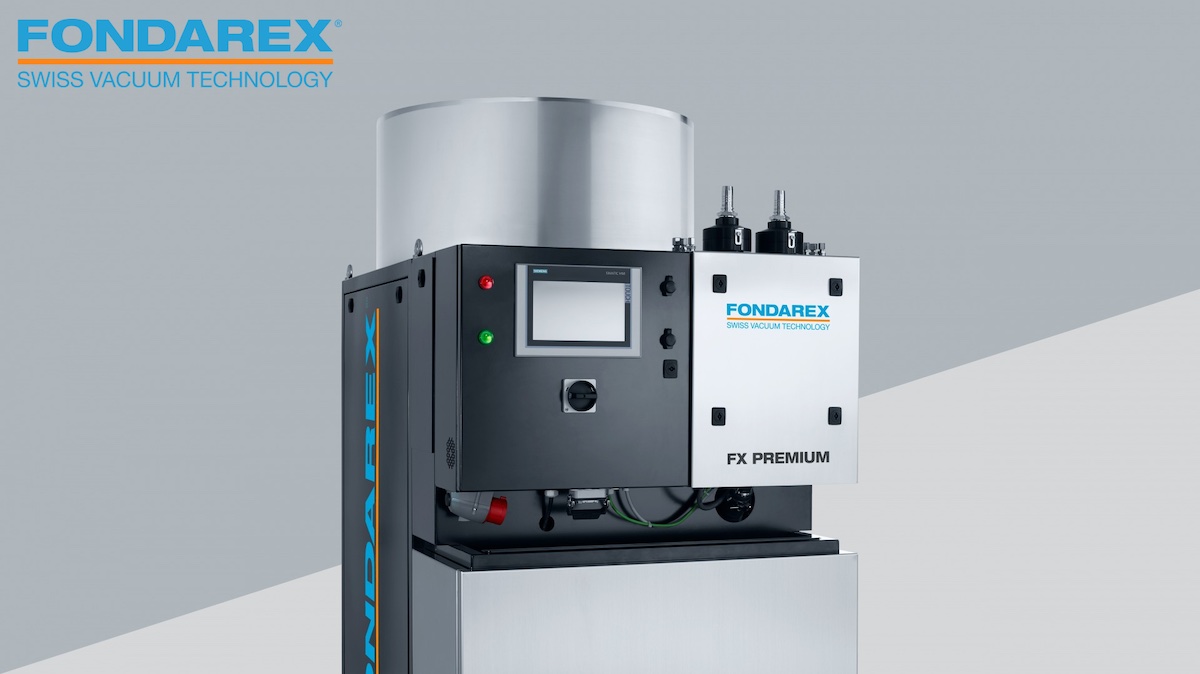

FX PREMIUM

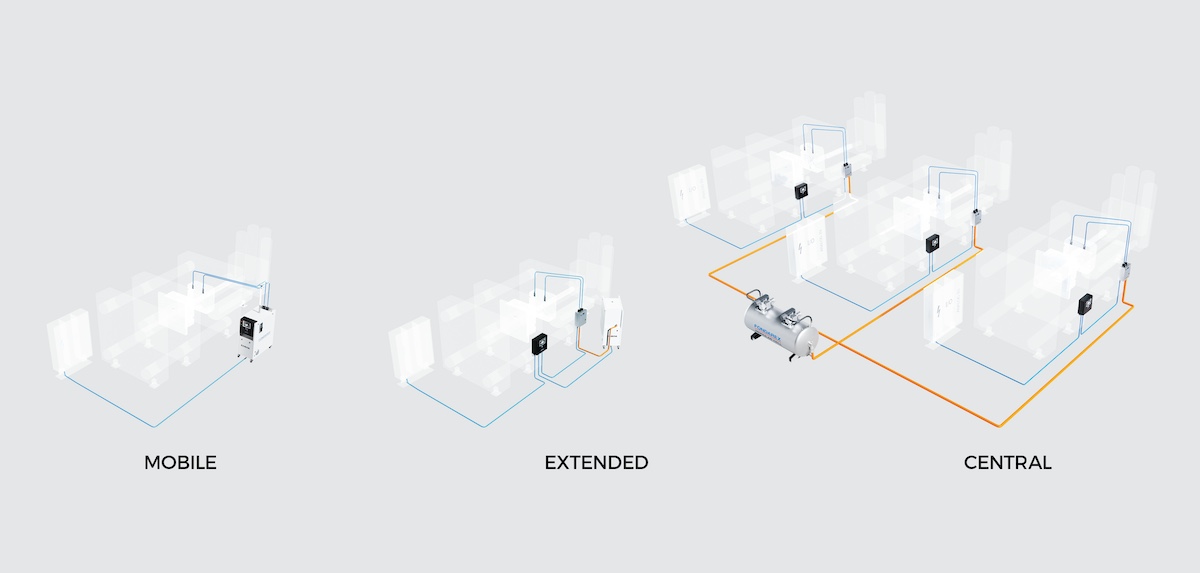

MOBILE / EXTENDED
Since the launch of the Highvac series in 2010,
the Highvac Premium system has been internationally recognized
as the quality standard for vacuum-assisted high-pressure
die casting. Now being replaced by FX Premium.

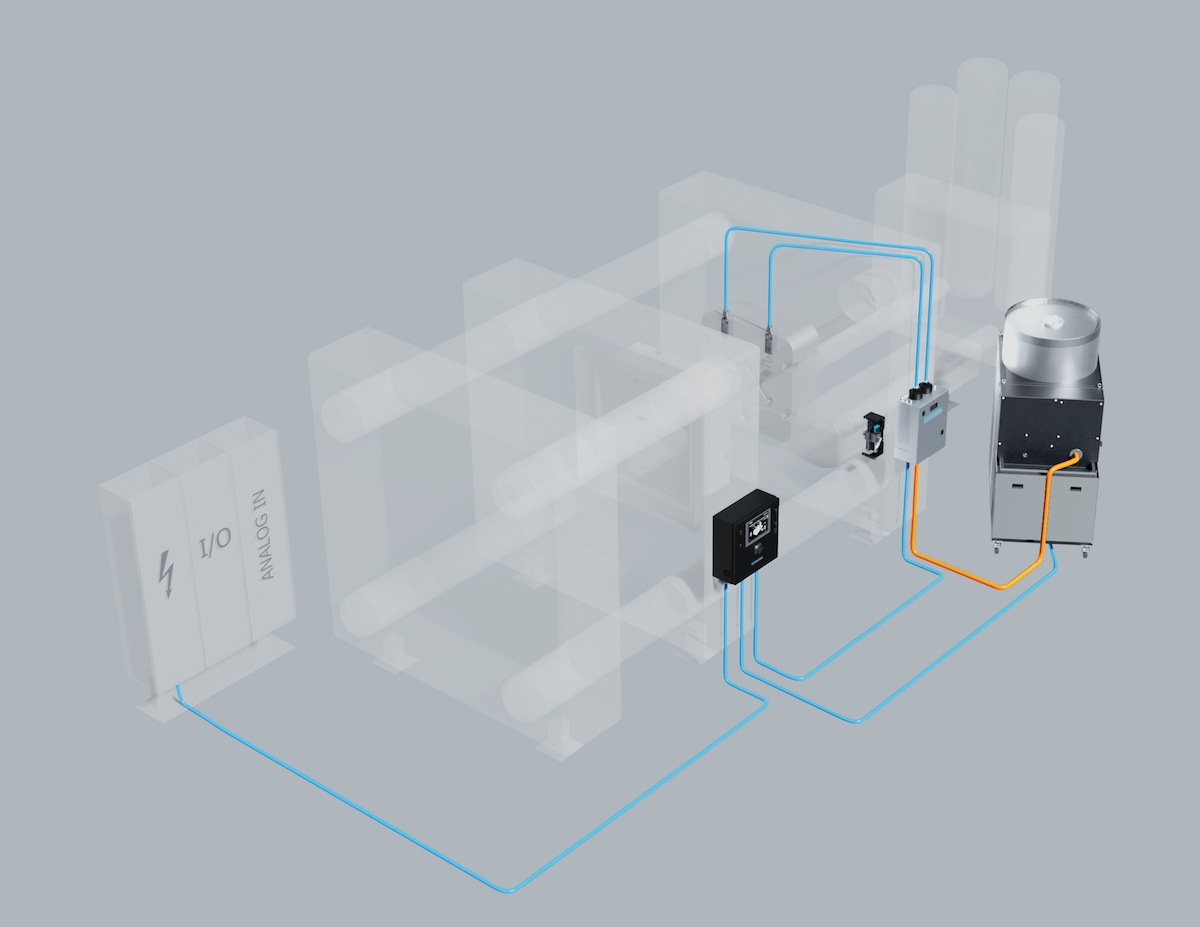

Full flexibility of configuration and placement.
Simply position the modules to best suit your layout.
To ensure the best performance and quality,
link the vacuum channels closer to the die.

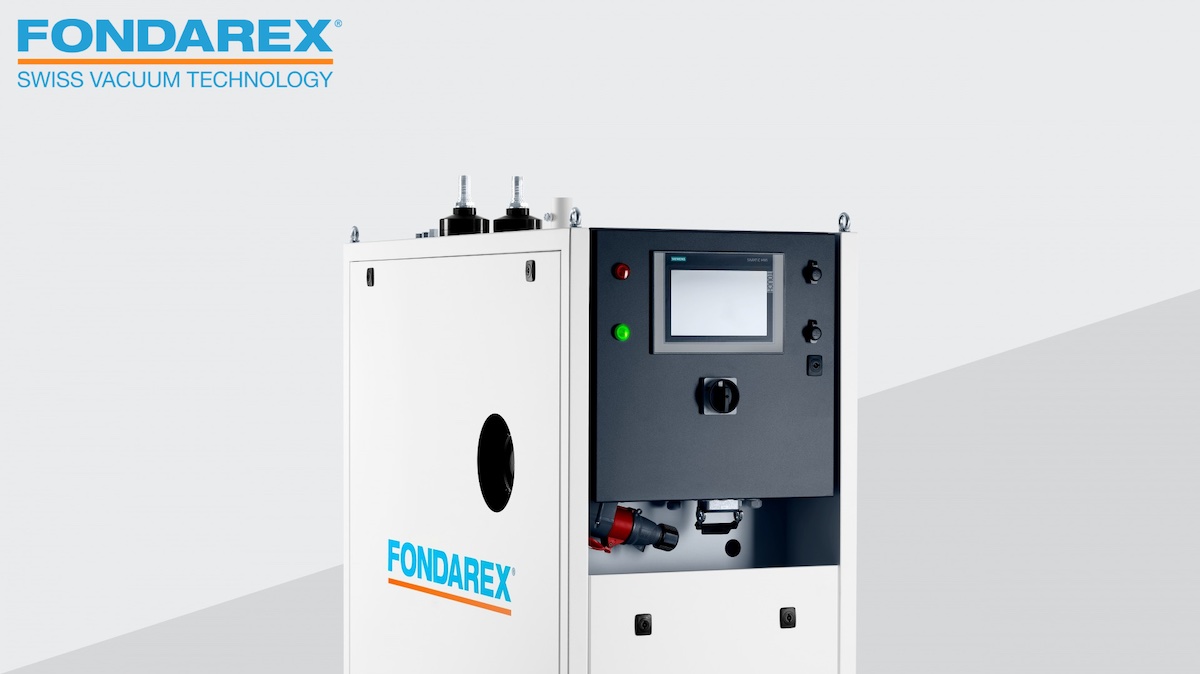

ZAMAK
MOBILE / EXTENDED / CENTRAL
Based on the FX Premium concept, this unit is specifically
adapted for the hot-chamber die casting industry.
Fast vacuum opening
Vacuum control
Data transfer
OPC UA ready
Compact design
FEATURES
Curve display of vacuum measurement
Vacuum measurement in the tank
Filter contamination control per cycle
Internal storage of 500 production recipes
Error diagnostic display
Vacuum control (3 positions)
Evacuated air volume
Leak test / leak detection
Separate electrical and pneumatic cabinets
Wire interface compatible with the Highvac Premium series
Profinet interface
OPC UA ready
Extended version with flexible configuration
